Guangdong Jinuosh Technology Co., Ltd
✦High Precision Granite Base.
✦Column Type Structure.
✦Z Axis Auto Focus Magnifying Lens.
✦High-Resolution Camera.
✦Multi-Sensor Integration.
✦Software Controlled Ring Light.
✦2D&3D Non-Contact Measurements.
Features
✦High Precision Granite Base.
✦Column Type Structure.
✦Z Axis Auto Focus Magnifying Lens.
✦High-Resolution Camera.
✦Multi-Sensor Integration.
✦Software Controlled Ring Light.
✦2D&3D Non-Contact Measurements.
CAD Compatibility
Specification
| MODEL | C400 | |
| Measuring range(mm)(X·Y·Z) | 400x300x200 | |
| Image and Measuring | CCD | 1/2 "GIGE Color Camera,1.3 MP |
| Magnification | Lens 0.7X-4.5X,Monitor magnification :40X-250X | |
| Working distance | 90mm | |
| Software | JJINUOSH A-VM SYSTEM software | |
| Linear scale resolution | 0.5μm | |
| Driving system | CNC control, close-loop AC Servo driving system, joystick, mouse or keyboard control | |
| lllumination | White LED transmission light source,White LED 3-ring 8-area programmable ringlight source | |
| Weight | 420KG | |
| Dimension(mm)(L·W·H) | 810×1200×1650 | |
Application
Machinery：sheet metal, mould & die, gear,turning parts like bearings, shaft.
Electronics：phone& tablet sheet, PCB,watch parts, etc.
Plastics：mobile phone camera plate, cover,front bezel, slide plate, etc.
-
Machining industry
The vision measuring machines are mainly used for internal inspection, positioning, evaluation and diagnosis of workpieces. It mainly inspects some defects inside the workpiece, such as size, cracks, pores, inclusions, welds, etc. It is used in a wide range of industries, but the development in the precision hardware industry is more significant.
-
Hardware industry
The vision measuring machines are mainly used for internal inspection, positioning, evaluation and diagnosis of workpieces. It mainly inspects some defects inside the workpiece, such as size, cracks, pores, inclusions, welds, etc. It is used in a wide range of industries, but the development in the precision hardware industry is more significant.
-
Mould
In mold processing, product quality is the life of an enterprise. The quality of mold products needs to be guaranteed, and manufacturers also need to use this to measure whether the products are qualified. Therefore, choosing the right precision measuring instrument for product testing is a very important part, and it is also related to the quality of the entire product.
-
Precision Electronics
With the development of science and technology,today's manufacturing industry has higher and higher requirements for the measurement accuracy of various components, so the requirements for the visual measuring machine, a measuring instrument, are becoming more and more demanding. It is the product of the perfect combination of traditional optical projection and computer, which has obvious advantages over traditional measurement technology.
-
Automotive industry
From traditional vehicles to new energy vehicles, from powertrains,auto parts to body and sub-assembly, from inspections in measurementrooms to automated production line inspections, from single sizeevaluation and analysis to full-process data management systems,Jinuosh provides a comprehensive detection solution for automobilemanufacturers.
-
Medical Instruments
Medical devices must have strict quality assurance,and no mistakes can be made, and product quality monitoring and testing largely rely on precision measuring instruments. There are many measuring instruments used to detect medical devices. According to the characteristics of the products, there are several commonly used measuring instruments, such as video measuring machines and instant vision measuring machines.
Hardware parts
Die-cut components

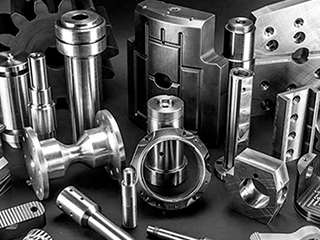

Machined parts
Mobile phone parts
pcb
Automotive lithium battery
